Examples of Call Agent Rulesets
Replace RURI User and TO display Name if RURI User is 1xxx by 102
Replace the RURI User Prefix 9 by 1800 in an Outgoing Phone Number
Add the 1450 Prefix to an Outgoing Phone Number in RURI TO and TO Display Name
Replacing the Entire Source Phone Number by 18001234567 - FROM Display Name and FROM User
Send Specific From Host
Replace the From Host part with somewhere.com
Allow a Specific Number Range
Allow outgoing Sip calls only for users with an extension number ranging from 76610 to 76619, 76650 to 76659, and 76660 to 76669.
Remove the Prefix 9 on RURI
Add CLIR Feature
Drop Incoming International Call with International Call Blocked Reason
Drop all incoming international calls (i.e. numbers starting with 00) without sending a reply and blacklisting the incoming IP by firewall if repeated.

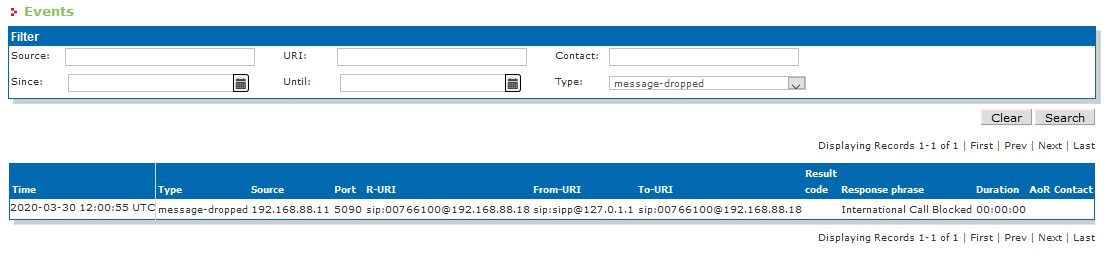

The Reason appears under SBC/ Events
Block Outgoing International Calls and Reply with the 603 Rejected SIP Error Code
Block all outgoing international calls (i.e. numbers starting with 00) and reply with the 603 Rejected SIP error code.
Drop Anonymous Calls without a Reason
^[Aa][Nn][Oo][Nn][Yy][Mm][Oo][Uu][Ss]\$ | ^[Rr][Ee][Ss][Tt][Rr][Ii][Cc][Tt][Ee][Dd]\$

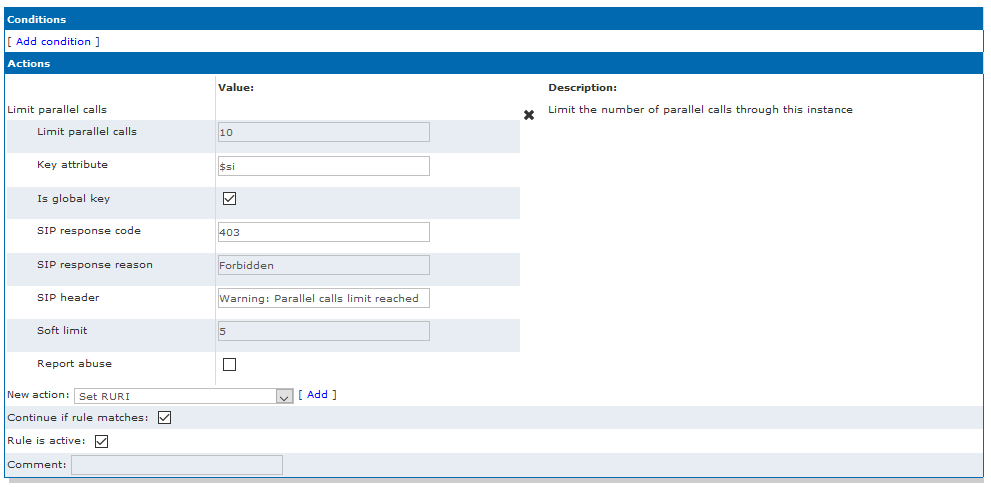

Limit Parallel Calls
Limit the parallel calls from the same source IP to 10, log a message when there are 5 parallel calls, and reject subsequent calls with SIP 403
The logs message appears under SBC/Events
Set the calling number to a 4 digit random number (0000 to 9999) and copy its value to the From display username.
Setting Up Traces
Log SIP/RTP traggic into pcap file. The file will be saved under Management/File in the sbc/logs folder

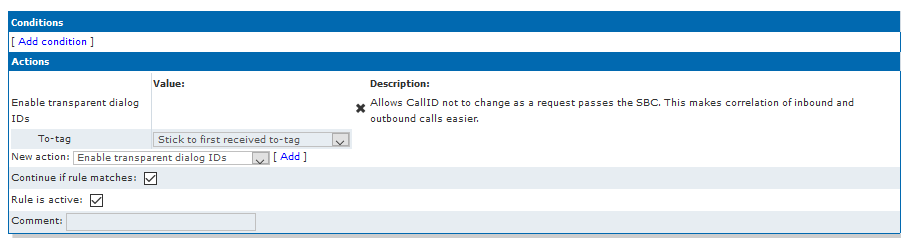

Enable Transparent Dialog IDs
